佳博蓝牙打印在线设计模板

佳博蓝牙打印机PDF在线设计模板


业务场景:自定义的模板通过 佳博蓝牙打印机进行打印

               1.打印格式通过代码去拼接(麻烦)  2.直接打印pdf(方便,可延伸业务)


最终方案流程:通过html设计打印界面----》html生成pdf文件模板-----》pdf模板填充数据-----》发送给手机端进行打印


通过html设计打印界面(网上找的条码在线设计,进行的二次开发)程序员之家

二次开发主要代码块

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
var head = "<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE html PUBLIC '-//W3C//DTD XHTML 1.0 Strict//EN' 'http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd'><html xmlns='http://www.w3.org/1999/xhtml'><head><title>"+(parseInt(pdfwidth)-25)+"|"+(parseInt(pdfheight)-25)+"</title><meta http-equiv='Content-Type' content='text/html; charset=UTF-8'/><style type='text/css' rel='stylesheet'>* { margin: 0;  padding: 0; }body { font-family: 'Microsoft YaHei UI'; } ";
var footer = "</body></html>";
var sourcesvg;
var svgtype;//rect一维码(1.bar)  use二维码(2.qr)
//把一维码元素替换掉
sourcesvg = $("svg").parent().html();
if (sourcesvg != undefined) {
if (sourcesvg.indexOf("<rect x") != -1) {
svgtype = "bar";
else {
svgtype = "qr";
}
$("svg").parent().html("<img class='sourcesvg' style='height: 100%;width: 100%'  src='${" + svgtype + "codeImg}'>");
}
//所有img后面都加${img}
$("div[class=hiprint-printPaper-content] img").each(function () {
$(this).parent().append("thimg")
});
if(svgtype == "bar"){
$(".sourcesvg").parent().append("<div class='hibarcode_displayValue'>${code}</div>");
}
var clone = $('div.hiprint-printPaper-content').clone();
clone.find('.hiprint-headerLine').remove();
clone.find('.hiprint-footerLine').remove();
clone.find('.hiprint-paperNumber').remove();
var html = clone.html();
var reg = new RegExp("thimg""g");//g,表示全部替换。
html = html.replace(reg, "</img>");//直接写里面会失效
reg = new RegExp("<br>""g");//g,表示全部替换。
html = html.replace(reg, "<br/>");//直接写里面会失效
//添加pdf尺寸
head = head + "@page{  size:" + pdfwidth + "mm " + pdfheight + "mm;  }";
head = head + "</style></head><body>";
html = head + html + footer;
//console.log(html);
//删除所有图片的thimg
$("div[class=hiprint-printPaper-content] img").each(function () {
var tupian=$(this).parent().html();
tupian=tupian.substring(0,tupian.indexOf("thimg"));
$(this).parent().html(tupian);
});
$(".sourcesvg").parent().html(sourcesvg);
var blob = new Blob([html], {type: "text/plain;charset=utf-8"});
saveAs(blob,Math.uuid()+".html");

html页面设计和导出.zip

下面是JAVA后端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
<!--打印pdf生成-->
<dependency>
    <groupId>org.freemarker</groupId>
    <artifactId>freemarker</artifactId>
    <version>2.3.23</version>
</dependency>
<dependency>
    <groupId>com.itextpdf</groupId>
    <artifactId>itext-asian</artifactId>
    <version>5.2.0</version>
</dependency>
<dependency>
    <groupId>com.itextpdf</groupId>
    <artifactId>itextpdf</artifactId>
    <version>5.4.2</version>
</dependency>
<dependency>
    <groupId>org.xhtmlrenderer</groupId>
    <artifactId>flying-saucer-pdf</artifactId>
    <version>9.0.8</version>
</dependency>
<dependency>
    <groupId>com.google.zxing</groupId>
    <artifactId>core</artifactId>
    <version>3.1.0</version>
</dependency>
<dependency>
    <groupId>com.google.zxing</groupId>
    <artifactId>javase</artifactId>
    <version>3.1.0</version>
</dependency>
<dependency>
    <groupId>net.sf.barcode4j</groupId>
    <artifactId>barcode4j-light</artifactId>
    <version>2.0</version>
</dependency>
<!--pdf生成图片-->
<dependency>
    <groupId>org.apache.pdfbox</groupId>
    <artifactId>pdfbox</artifactId>
    <version>2.0.19</version>
</dependency>

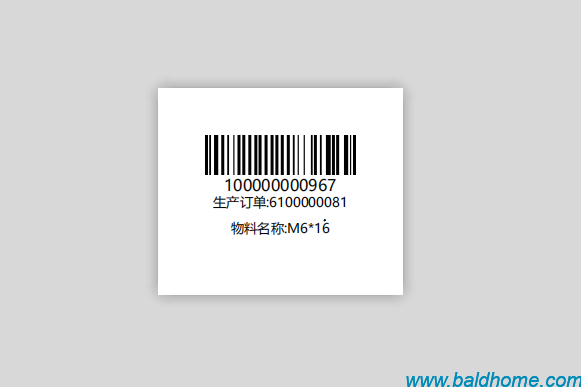

html生成pdf文件模板-----》pdf模板填充数据

程序员之家

说明:这里的打印html模板文件是上传到配置界面的 然后在数据库保存这个html地址 ,然后后台代码下载

主要代码块

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
package com.tengnat.mes.configuration.modular.printer.service;


import com.tengnat.assist.exception.BusinessException;
import com.tengnat.mes.common.consts.ApplicationConst;
import com.tengnat.mes.common.enums.IsDelEnum;
import com.tengnat.mes.common.utils.file.FileUtil;
import com.tengnat.mes.configuration.core.dao.SqlDao;
import com.tengnat.mes.configuration.core.utils.BarcodeUtil;
import com.tengnat.mes.configuration.core.utils.FreemarkerTemplate;
import com.tengnat.mes.configuration.core.utils.PDFUtils;
import com.tengnat.mes.configuration.core.utils.QRCodeUtils;
import com.tengnat.mes.configuration.modular.printer.dao.PrintTemplateDao;
import com.tengnat.mes.configuration.modular.printer.entity.PrintTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.DefaultResourceLoader;
import org.springframework.core.io.Resource;
import org.springframework.core.io.ResourceLoader;
import org.springframework.stereotype.Service;
import org.springframework.util.ResourceUtils;
import org.xhtmlrenderer.simple.PDFRenderer;

import javax.servlet.http.HttpServletRequest;
import java.io.*;
import java.net.HttpURLConnection;
import java.net.URL;
import java.util.*;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

/**
 * Created by SkinApe on 2020/5/9.
 * 打印pdf生成
 */
@Service
public class PrinterPdfService {

    private  String svgtype;

    @Autowired
    private  PrintTemplateDao printTemplateDao;
    @Autowired
    private  SqlDao sqlDao;

    /**
     * 生成
     * @param code 单据
     * @param type 模板类型
     * @param request
     * @return
     */
    public  List<Map<String,Object>> creatPdf(String code,String type){
        //,HttpServletRequest request   这里很纠结springboot打成的jar的锅!!!!!!
        //String printPath =  request.getSession().getServletContext().getRealPath("/")+ "files/print/";//打印路径
        String printPath =  System.getProperty("user.dir")+ "/files/print/";//打印路径

        String tempathPath = printPath+ "template/";//模板路径
        String barCodePath = printPath + "images/";//一维码路径
        String qrCodePath = printPath + "images/";//二维码路径
        QRCodeUtils.mkdirs(barCodePath);
        QRCodeUtils.mkdirs(qrCodePath);
        QRCodeUtils.mkdirs(tempathPath);

        //根据模板查询对应的执行sql
        PrintTemplate printTemplate=printTemplateDao.findByPrintIdentifyingAndTemplateTypeAndIsDel(type,"bluetooth" +
                "", IsDelEnum.DEL_No.getCode());
        Map<String,Object> params = new HashMap<>();
        Map<String, Object> valueMap = new HashMap<>();
        List<Map> dataMaplist = new ArrayList<>();

        //执行查询sql
        if (printTemplate==null) {
            throw new BusinessException("无打印模板:"+type);
        }

        params.put(ApplicationConst.SQL_KEY, printTemplate.getSql());
        valueMap.put("code", code);
        params.put(ApplicationConst.SQL_QUERY_VALUE_KEY, valueMap);
        dataMaplist = sqlDao.findList(params);

        List<Map<String,Object>> resultlist=new ArrayList<>();
        for (Map<String,Object> dataMap:dataMaplist){
            //dataMap.put("code","5201314");
            String uuid = UUID.randomUUID().toString();
            String pdfPath = printPath + uuid + ".pdf";//pdf
            String htmlPath = printPath + uuid + ".html";//html
            try {

                //下载打印模板 获取打印模板宽度
                String pdfwidthHeight=downLoadFromUrl(printTemplate.getTemplateUrl(),uuid+".html",tempathPath);

                if (svgtype.equals("barcodeImg")){
                    //生成条形码
                    File barCodeFile = new File(barCodePath+uuid + "bar.png");
                    BarcodeUtil.generateToFile(dataMap.get("code").toString(), BarcodeUtil.IMG_TYPE_PNG, barCodeFile);
                    System.out.println("生成条形码完成!");
                }else{
                    //生成二维码
                    String qRCodePath=QRCodeUtils.encode(dataMap.get("code").toString(),qrCodePath,uuid + "qr.png");
                    System.out.println("生成二维码完成!");
                }


                //生成html
                FreemarkerTemplate tp = new FreemarkerTemplate("UTF-8");
                tp.setTemplateDirectoryPath(tempathPath);
                String osName = System.getProperties().getProperty("os.name");
                //liunx环境
                if(osName.equals("Linux"))
                {
                    dataMap.put("barcodeImg", barCodePath+uuid + "bar.png");
                    dataMap.put("qrcodeImg", qrCodePath+uuid + "qr.png");
                }else{
                    dataMap.put("barcodeImg""/"+barCodePath.replace("\\","/")+uuid + "bar.png");
                    dataMap.put("qrcodeImg""/"+qrCodePath.replace("\\","/")+uuid + "qr.png");
                }

                //封装数据 end
                File htmlFile = new File(htmlPath);
                tp.processToFile(uuid+".html", dataMap, htmlFile);
                System.out.println("生成html完成!");


                //生成pdf
                PDFUtils.htmlFileToPDFFile(htmlFile, new File(pdfPath), new File(printPath));
                System.out.println("生成pdf完成!");

                //生成图片
                //PDFUtils.pdfToImage(pdfPath,printPath+uuid + ".png",Integer.parseInt(pdfwidthHeight.split("\\|")[0])*8);
                //System.out.println("生成pdf图片完成!");


                Map<String,Object> result=new HashMap<>();
                result.put("pdf","files/print/"+uuid + ".pdf");
                result.put("pdfWidth",pdfwidthHeight.split("\\|")[0]);
                result.put("pdfHeight",pdfwidthHeight.split("\\|")[1]);
                result.put("code",code);
                resultlist.add(result);
                //删除刚刚生成的内容 除了pdf
                FileUtil.deleteFile(printPath,1,new String[]{uuid});
                //throw new BusinessException("删除的路径:"+FileUtil.chu());

            catch (IOException e) {
                e.printStackTrace();
            catch (Throwable throwable) {
                throwable.printStackTrace();
            }
        }


        return resultlist;
    }

    /**
     * 下载打印模板 获取打印模板宽度 和 高度
     * @param urlStr
     * @param fileName
     * @param savePath
     * @throws IOException
     */
    public  String  downLoadFromUrl(String urlStr,String fileName,String savePath) throws IOException{
        URL url = new URL(urlStr);
        HttpURLConnection conn = (HttpURLConnection)url.openConnection();
        //设置超时间为3秒
        conn.setConnectTimeout(3*1000);
        //防止屏蔽程序抓取而返回403错误
        conn.setRequestProperty("User-Agent""Mozilla/4.0 (compatible; MSIE 5.0; Windows NT; DigExt)");

        //得到输入流
        InputStream inputStream = conn.getInputStream();

        byte[] buffer = new byte[1024];
        int len = 0;
        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        while((len = inputStream.read(buffer)) != -1) {
            bos.write(buffer, 0, len);
        }
        bos.close();
        //获取自己数组
        byte[] getData =bos.toByteArray();

        //文件保存位置
        File saveDir = new File(savePath);
        if(!saveDir.exists()){
            saveDir.mkdir();
        }
        File file = new File(saveDir+File.separator+fileName);
        FileOutputStream fos = new FileOutputStream(file);
        fos.write(getData);
        String pdfwidthHeight = "0";
        String str = new String(getData);
        if (str.indexOf("barcodeImg")!=-1){
            svgtype="barcodeImg";
        }else{
            svgtype="qrcodeImg";
        }
        //设置匹配规则
        String regStr = "<title.*>(.*)</title>";
        Pattern pattern = Pattern.compile(regStr);
        while (str != null) {
            Matcher m = pattern.matcher(str);
            if (m.find()) {
                pdfwidthHeight=m.group(1);
                break;
            }
        }
        if(fos!=null){
            fos.close();
        }
        if(inputStream!=null){
            inputStream.close();
        }
        return pdfwidthHeight;
    }




}

html生成pdf源码.zip


佳博蓝牙打印PDFAndroid源码:https://www.baldhome.com/article/40


解压密码!!!!

关注光头e家回复佳博蓝牙打印


程序员之家
请先登录后发表评论
  • 最新评论
  • 总共0条评论
